Sheet metal work and welding of the hydraulic structures are performed directly inside the container. Waterproofing is ensured by a seal made of special coatings that constitutes a perfectly monolithic block. It prevents water from coming into contact with the structures. The Coatings’ properties are always chosen in accordance with the project’s specifics (Health compliance certificate, WRAS, aggressiveness of reagents or water, etc.).
Applications
Construction of an iron removal unit
Pressure boosting and water treatment unit
Treating pharmaceutical effluent using reverse osmosis
Treating concrete laitance at a major international worksite
The advantages of Nomado’s solutions
Cost benefits
- Cost-effective alternative to civil engineering infrastructures and
buried facilities - Systems that can be reused and relocated (worksite bungalows, industrial reorganisation, end of concession)
- Portable investment
- Possibility to rent, buy back or lease with option to purchase
- In-situ production or treatment
Operational and environmental benefits
- Multimodal transportation (rail, road, sea, air…)
- Simple, fast installation and commissioning
- Maintenance by our technicians possible
- Easy, rapid dismantling upon project completion
- Reduction in carbon footprint
- Worksite hazards reduced
Quality and HSE
- Treatment process adaptable to discharge standards
- Design in accordance with country standards and regulations
- Pre-built and factory tested
- Anticipation of the possibility of deteriorated operating conditions (scenario analysis)
- Targeted oversizing of critical equipment (pumps, motors, etc.)
- Specific job site conditions taken into account (heat, sand, sea, etc.)
Versatile and adaptable
- “Plug&play” design
- Possibility of adding a unit in the event of a variation in load or flow rate
- Can be integrated into an existing facility
Understanding how a physico-chemical treatment unit functions
Treatment
Decantation or sedimentation of the solids suspended in effluents is a standard procedure in the pre-treatment phase for the production of drinking water. This can be preceded by a coagulation and flocculation stage in order to increase the settlement of the suspended matter.
Settling may be static or lamella. Lamella sedimentation enables the settling surface area to be increased for a given unit.
This process is suitable for removing particles and suspended micro-organisms, certain heavy metals and organic chemicals with low solubility.
Process

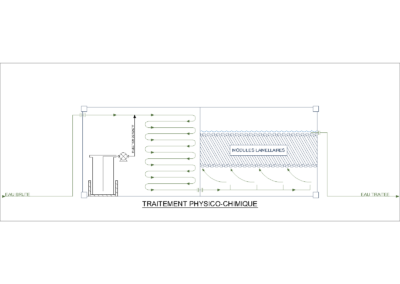

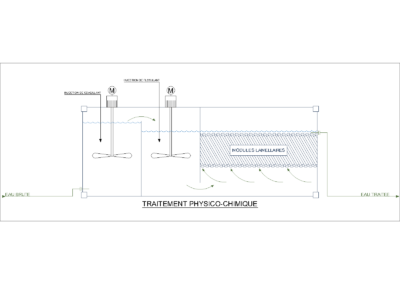

A coagulant and a chemical flocculant are injected into the raw water and mixed, forming flocs or precipitates that either settle or are trapped at a later stage of the treatment process. Effluent mixing is achieved in reactors equipped with pendulum agitators or directly on the production in line with static stirrers and mixing loops.
The different reactions use load neutralization, adsorption and, trapping mechanisms or chemical precipitation.
In the settling tank, flocs are transformed into diluted sludge that will be removed as a by-product.
